Sae Port Size Chart

Sae Port Size Chart - Once you make a note of that,. Figures are for reference only, as any boss can be used for a tubing size depending. Nominal tube od is shown for the standard inch sizes and the conversion to equivalent millimeter sizes. Check out the sae size chart to know about common thread dimensions including unc, unf, and unef, as well as types and measurements of sae threads. Sae information is provided as an aid to designers. Below we’ve compiled a hydraulic fittings size chart describing some of the more common fitting sizes and types currently in use by pipe fitters and other professionals. Use the lowest torque value from the chart when wet torquing. For most accurate sizing results when printing, change the page scaling setting to 'none'. Dash numbers are commonly expressed as the umerator of a fraction where the denominator is always 16 for. Record the values and compare your measurements with the figures provided in this guide.

Pin on JIC JIS BSP DIN ISO SAE hydraulic fittings Drawing size Chart

For most accurate sizing results when printing, change the page scaling setting to 'none'. Nominal tubing od is shown for the standard in sizes. Sae information is provided as an aid to designers. Begin by using a caliper to measure the port hole diameter the bolt. Sae and npt pipe and port sizeswww.fluidynefp.com

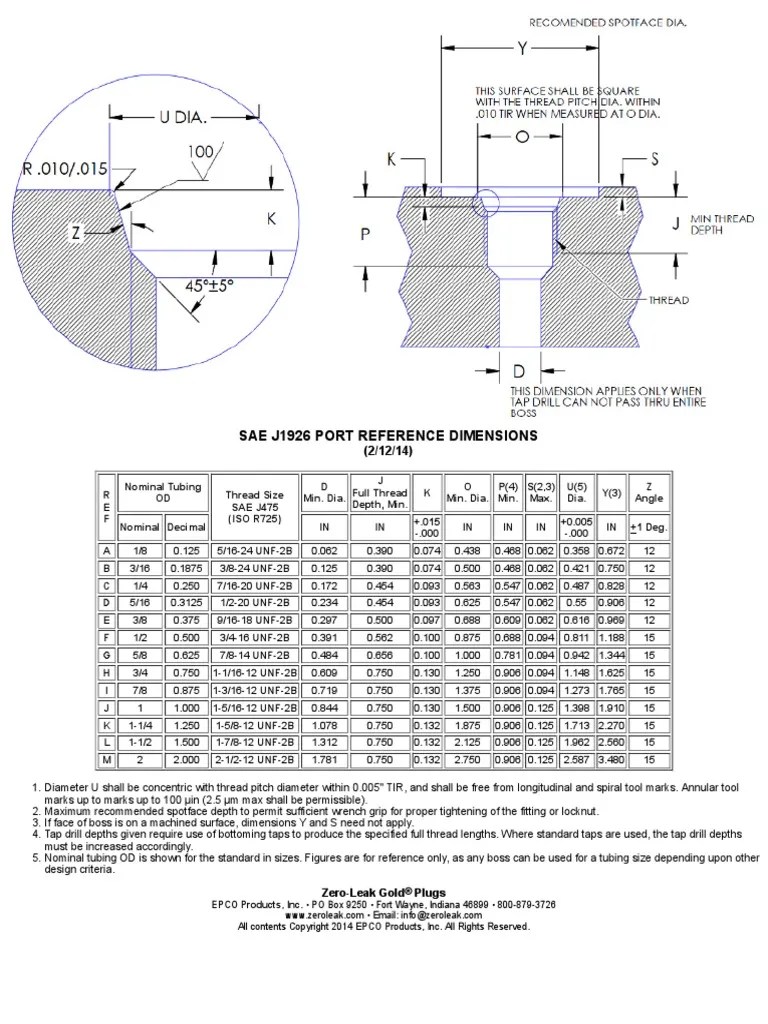

Sae J1926 Port Reference Dimensions PDF Pipe (Fluid Conveyance) Industrial Processes

Below we’ve compiled a hydraulic fittings size chart describing some of the more common fitting sizes and types currently in use by pipe fitters and other professionals. Check out the sae size chart to know about common thread dimensions including unc, unf, and unef, as well as types and measurements of sae threads. Record the values and compare your measurements.

Sae 4 Port Tool Dimensions at Gabriella Raiwala blog

Sae and npt pipe and port sizeswww.fluidynefp.com Dash numbers mbers, abbreviations that make ordering components easier. Dash numbers are commonly expressed as the umerator of a fraction where the denominator is always 16 for. Check out the sae size chart to know about common thread dimensions including unc, unf, and unef, as well as types and measurements of sae threads..

compagno Diplomazia finire sae j1926 1 port dimensions Sapone fresa Specifico

Dash numbers are commonly expressed as the umerator of a fraction where the denominator is always 16 for. Sae and npt pipe and port sizeswww.fluidynefp.com For most accurate sizing results when printing, change the page scaling setting to 'none'. Check out the sae size chart to know about common thread dimensions including unc, unf, and unef, as well as types.

j1926 & j514 female port dimensions are different?? Drafting Standards, GD&T & Tolerance

For most accurate sizing results when printing, change the page scaling setting to 'none'. Figures are for reference only, as any boss can be used for a tubing size depending. Sae and npt pipe and port sizeswww.fluidynefp.com Once you make a note of that,. Below we’ve compiled a hydraulic fittings size chart describing some of the more common fitting sizes.

Sae Straight Thread Port Dimensions Metalworking Mechanical Engineering

Record the values and compare your measurements with the figures provided in this guide. Figures are for reference only, as any boss can be used for a tubing size depending. Use the lowest torque value from the chart when wet torquing. Dash numbers are commonly expressed as the umerator of a fraction where the denominator is always 16 for. Begin.

Orb Hydraulic Fittings Dimensions at Rocio Wilds blog

Below we’ve compiled a hydraulic fittings size chart describing some of the more common fitting sizes and types currently in use by pipe fitters and other professionals. Dash numbers mbers, abbreviations that make ordering components easier. Once you make a note of that,. Nominal tubing od is shown for the standard in sizes. Nominal tube od is shown for the.

Sae 4 Port Tool Dimensions at Gabriella Raiwala blog

Begin by using a caliper to measure the port hole diameter the bolt. Sae information is provided as an aid to designers. Figures are for reference only, as any boss can be used for a tubing size depending upon other design criteria. Once you make a note of that,. Figures are for reference only, as any boss can be used.

Forberg Scientific Inc How To Identify Fitting Threads

Begin by using a caliper to measure the port hole diameter the bolt. Sae information is provided as an aid to designers. Record the values and compare your measurements with the figures provided in this guide. Sae and npt pipe and port sizeswww.fluidynefp.com Nominal tubing od is shown for the standard in sizes.

SAE Gewinde ORB Fitting Größentabelle Wissen Yuyao Jiayuan Hydraulic Fitting Factory

Once you make a note of that,. Record the values and compare your measurements with the figures provided in this guide. Nominal tubing od is shown for the standard in sizes. Check out the sae size chart to know about common thread dimensions including unc, unf, and unef, as well as types and measurements of sae threads. Sae information is.
